Products > YUUSFJI Ultra-thin Passport reader

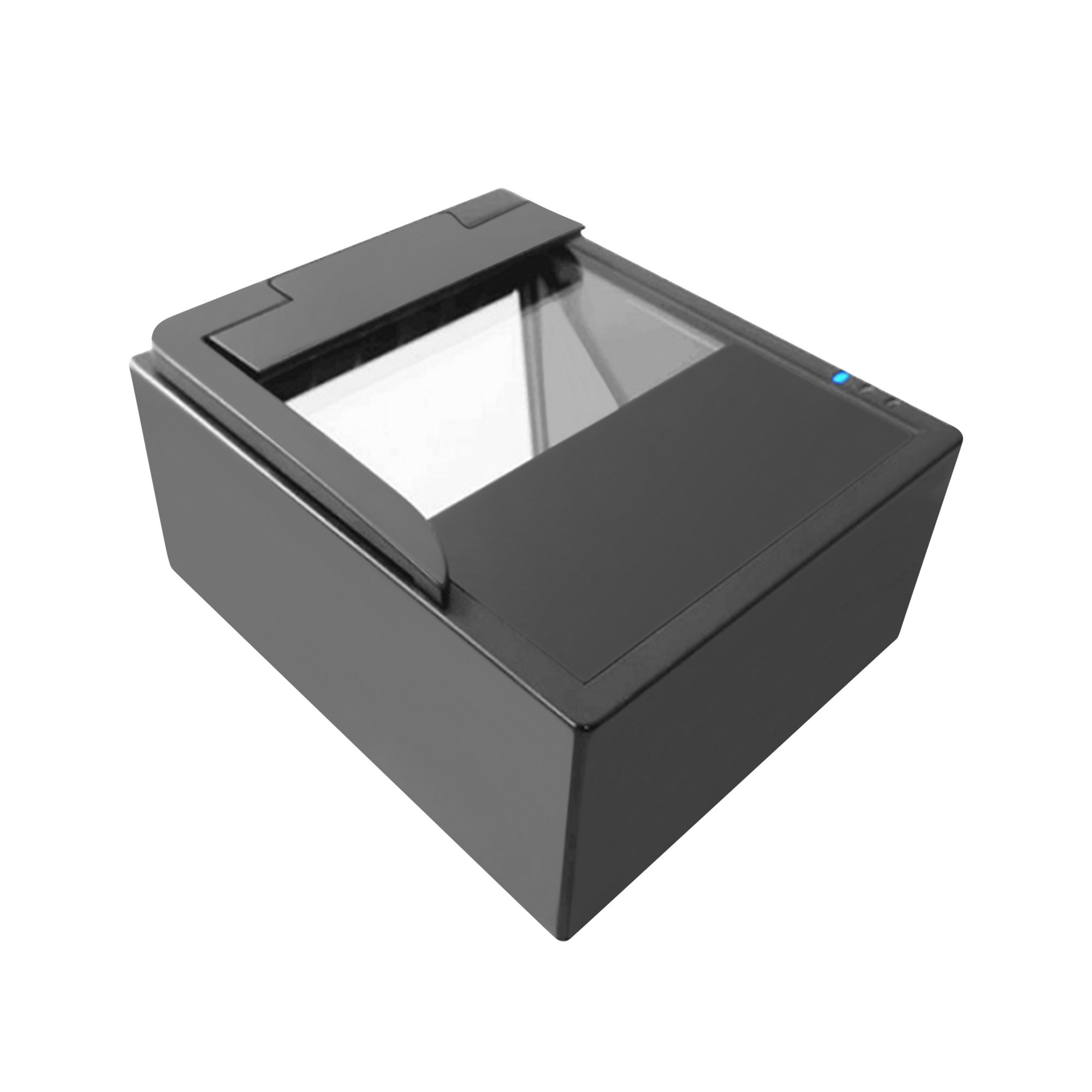

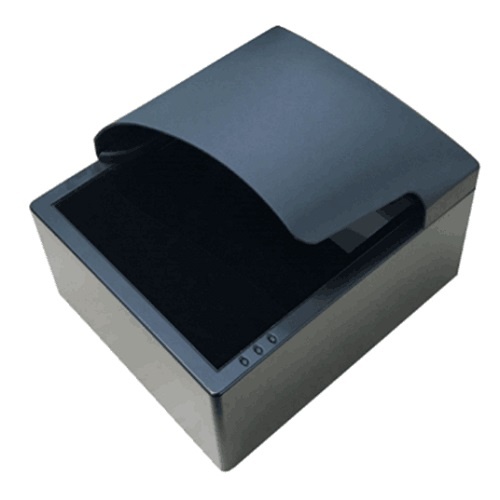

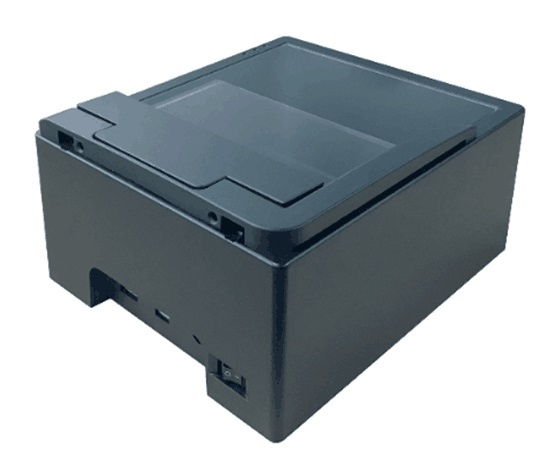

YUUSFJI Ultra-thin Passport reader
YUUSFJI Ultra-thin Passport reader YUUSFJI Ultra-thin Passport reader YUUSFJI Ultra-thin Passport reader YUUSFJI Ultra-thin Passport reader
Product name : YUUSFJI Ultra-thin Passport reader
Product No. : 2023427103535
Color : Black
Input Voltage : 100-240V
Weight : 1.5kg
Certifications : FBI Standard CJIS-RS-0010 (V7) IAFIS Image Quality Specifications (IQS) for Scanners Appendix F ANSI/NIST ITL-1-2007 FCC/CE
Size : Length: 192 mm (8”) Width: 163mm (6.4”) Height: 95 mm (3.7”) (without light shield)
Interface : USB 2.0
Operating Temperature : 0 ℃~50℃
Capture Mechanism : Automatic
Online Inquiry         Email Us


Product Use

JYDR2000 Full Page Reader can be used in inspecting and imaging Machine Readable Travel Documents in a variety of market segments.

²   Support travel documents containing contactless integrated circuit chips (eIDs and ePassports)

²   Optical document analysis no-chip travel documents (older passports and ID card etc.)

²   Quality assurance and chip encoding applications during the document issuance process


Key Features & Functionality

Ø  Multiple documents reading and imaging capability – imaging in 24-bit color

Ø  400 DPI high resolution imaging

Ø  Multiple wavelength illumination – visible, IR, UV

Ø  OCR data capture, Chinese data recognition

Ø  Enables images to be accessed as BMP or JPEG format

Ø  Automatically detected

Ø  Auto-triggering of documents

Ø  Automatically classified documents

Ø  USB 2.0 high speed compatible

Ø  Integrated USB 2.0 Hub – 1 port for external peripherals

Ø  No moving parts

Ø  Easy to embed into gates, entrances, or ports.


Reading Capability

Contact or Contactless IC reading and writing capability

Ø  ISO 14443 Type A and Type B ICs

Ø  ICAO recommendations in ICAO Doc 9303 supplement

Ø  All standardized rates, up to 848 Kbps

Ø  Average 3 seconds read-out time

Ø  Active and Passive authentication of ePassports

Ø  Chines ID cards

Ø  Residence permit for Taiwan, Hong Kong and Macao residents
